LiftXP Sizing Features
- Cloud based solution.

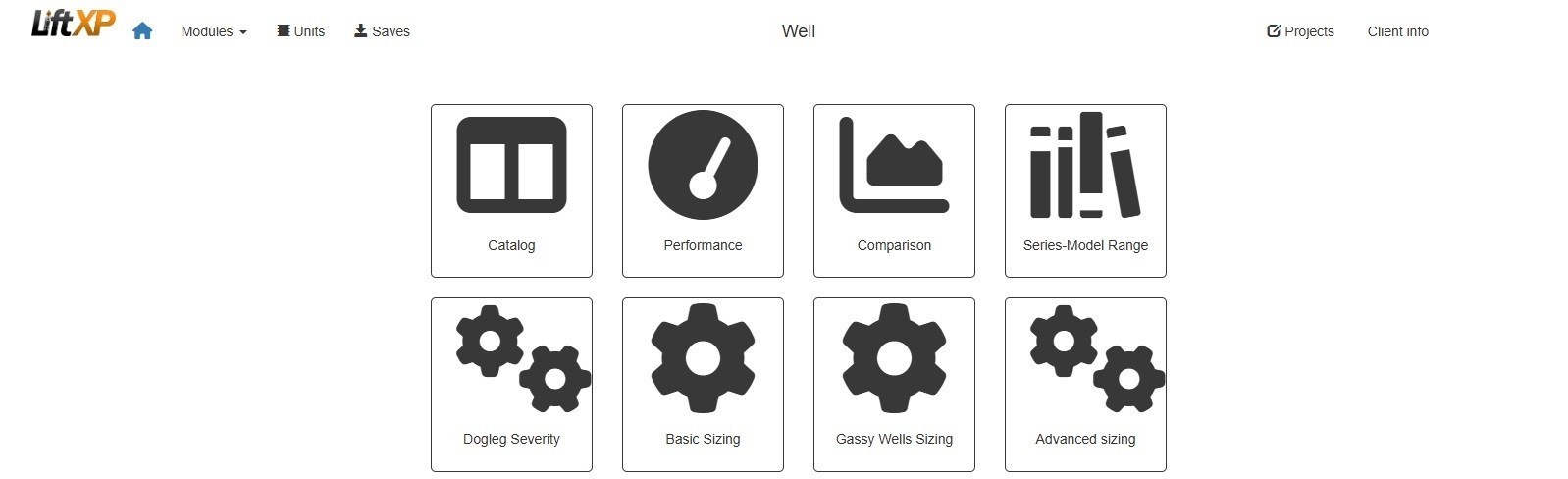

- Several Sizing Modules (Basic, Gassy, Advance, and Supports for Horizontal Pump System).
- Workflow style simplifying the Sizing process with Error warnings during the design process.
- Generate PDF Sales Reports.
- Downhole Diagram with a summary of the selected equipment.
- Select up to three protectors and up to two tandem motors.
- Multi-phase flow models accurately predict TDH requirements and pressure losses.
- Supports all manufacturer’s pumps.
- Ability to compare models range within the same series.

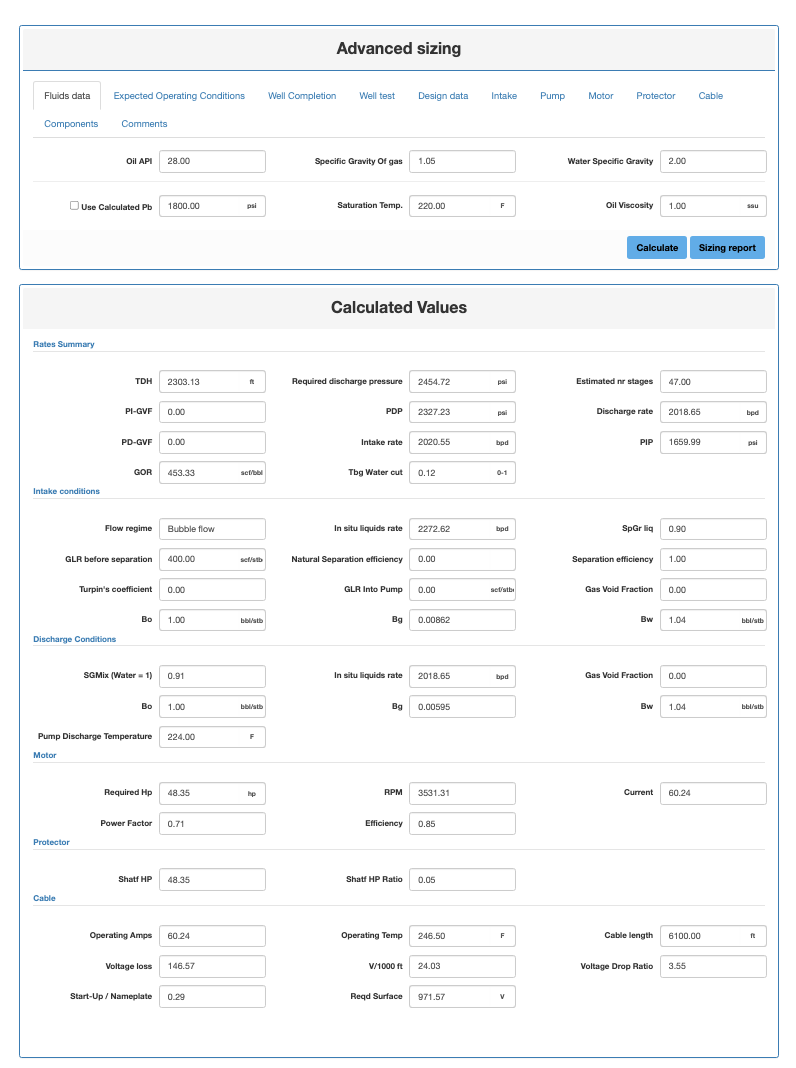

- Size vertical and deviated wells in Advanced Sizing.
- Apply Viscous Flow effects to Pump and Motor Performance.
- Find IPR curves to predict your inflow.
- Simulate free gas effects on your system including Turpin’s coefficient prediction.

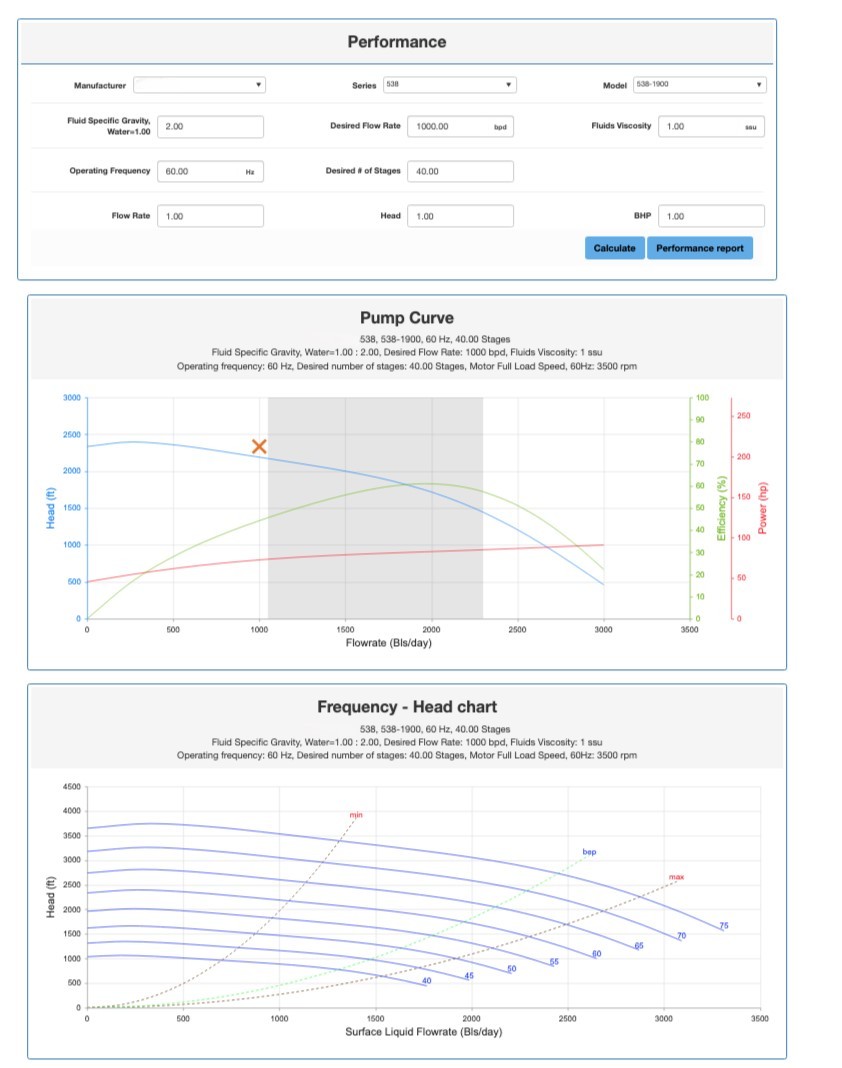

- Stage-by-stage pump calculations provide accurate calculation of stages and brake horsepower requirements.
- PVT calculations predict rates, densities, solubilities, and other required variables at every point of the system.
- A Required Stages vs Q chart gives an idea on the required stages should you expect the produced flow rate to change due to changes in the reservoir or uncertain rates forecast.
- Tabbed entries interface allows designers to go back and forth easily and quickly through the different entry and selection modules.
- IPR calculations allow users to match the inflow from the well to the expected pumped rates.
